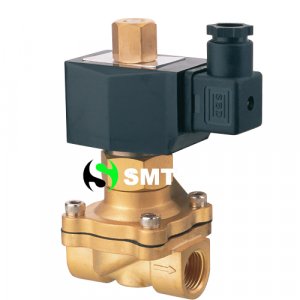

1:2-Way normally closed solenoid valve. Closed when de-energized, open when enegized.
2;Body material;brass
3;Max Allowable pressure 10kgf/cm/2; Ambient Temp 0℃-65℃
4:Serialized products,small in size,large flow rate,widely use.
5;Flow as the arrow,mounts in any position; Best position is Solenoid vertical and upright direction
6:voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC;voltage Tolerance:=10%to-10% applicable voltage
7:This series valves are offeredNBR,VITON,EPDM etc for Seats and diaphragm to provide on-off control of various fluids.
